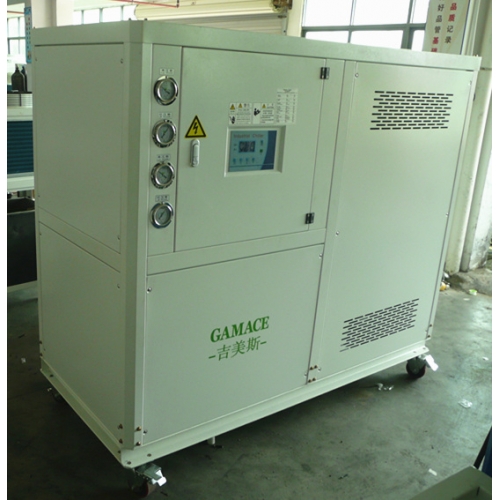

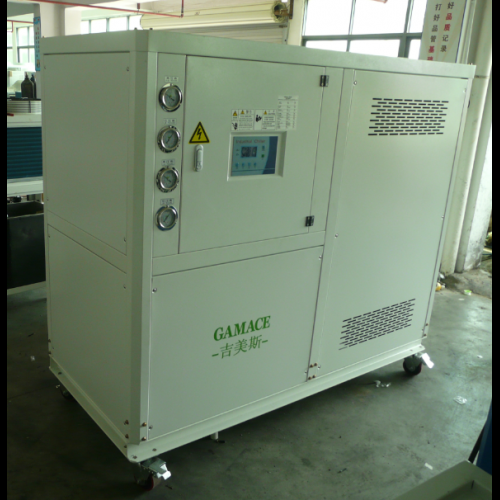

吉美斯牌系列工業冷水機可提供3℃-30℃。特殊低溫型更低至-25℃的冰水(溫差±1℃)。風冷式冷水機制冷量從1316-156245Kcak/h(壓縮機功率從0.5-60HP)，可廣泛應用于各個行業。
主機精選歐.美世界品牌壓縮機，制冷效率高，噪音低，節能省電，環保耐用，安全穩定。
電器采用國際品牌，工作穩定，超長壽命。
知名品牌低溫泵，大排量，低能耗，
精密式數顯溫度控制器，操作快捷，簡單直觀。能精確控制溫度在±1℃，設定溫度范圍5℃至40℃，可直接分析機組的運行狀況。靜電噴塑外殼，歐式設計，美觀大方，機身采用快速拆裝方式，方便使用和維護。
機組可根據客戶要求量身定做。
| 型號Model 項目Ltems | GMS- 3W |
GMS- 4W |
GMS- 5W |
GMS- 6W |
GMS- 8WD |
GMS- 10WD |
GMS- 12WD |
GMS- 15WD |
GMS- 20WD |
GMS- 25WD |
GMS- 30WD |
GMS- 40WD |
GMS- 50WD |
GMS- 60WD |
|
| 制冷量 C00ling capacity | KW 50HZ   |
9.59 11.22 |
12.43 14.54 |
15.91 18.32 |
19.18 22.45 |
24.85 29.08 |
31.83 37.24 |
38.37 44.89 |
50.14 58.66 |
67.14 78.56 |
81.53 85.39 |
99.19 116.05 |
129.06 151.00 |
153.91 180.07 |
198.12 237.75 |
60HZ  |
|||||||||||||||
| kcal/h 50HZ     |
8250 9654 |
10682 12498 | 13690 16018 |
16503 19308 |
21370 25009 |
27370 32023 |
32994 38603 |
43120 50451 |
57748 67565 |
70120 82040 |
85303 99805 |
110984 129851 |
132359 154860 |
170383 204460 |
|
60HZ  |
|||||||||||||||
| 溫控范圍 Temperature range | 3℃-常溫（0℃以下可定制）3℃-Room temperature(Below0℃ can be customized | ||||||||||||||
| 電 源 Power supply | 3PH-380/200V/220V/415V 50HZ/60HZ | ||||||||||||||
| 總功率 Total power | KW | 2.6 | 3.4 | 4.5 | 5.25 | 6.75 | 9 | 10.5 | 12.5 | 17.2 | 20.95 | 26 | 34 | 41.5 | 50.5 |
| 最大運行電流 Maximum current | A | 7.5 | 9.4 | 12.9 | 14.4 | 18,8 | 25.7 | 28.9 | 37.4 | 47.8 | 60 | 75.2 | 96 | 127.9 | 143.9 |
| 制冷劑 Refrigerant | 名稱/Name | R22/R407c/R134a/R404A/R410A | |||||||||||||
| 控制方式/Control | 毛細管/外平衡式熱力膨脹閥Capillary/external balance of thermal expansion valve | ||||||||||||||
| 壓縮機 Compressor | 類型/Type | 全封閉渦旋式(活塞式) | |||||||||||||
| 功率/Power(KW) | 2.2 | 3 | 3.8 | 4.5 | 3.0×2 | 3.8×2 | 4.5×2 | 5.6×2 | 7.5×2 | 9.4×2 | 11.3×2 | 15×２ | 18.8×２ | 22.5×２ | |
| 冷凝器 Condensator | 類型/Type | 干式殼管式/不銹鋼板式Dry type shell and tube type/Stainless steel plate | |||||||||||||
| 冷卻水量(m3/h) Cooling water | 2.1 | 2.9 | 3.6 | 4.2 | 5.7 | 7.1 | 8.3 | 11 | 14.4 | 17 | 21.4 | 29.3 | 35 | 43.2 | |
| 2.4 | 3.3 | 4.1 | 4.8 | 6.6 | 8.3 | 9.6 | 12.8 | 16.7 | 19.6 | 24.7 | 33.8 | 40.4 | 50 | ||
| 進出水管徑Diameter | 1" | 1" | 1" | 1-1/2" | 1-1/2" | 1-1/2" | 1-1/2" | 2" | 2" | 2" | 2-1/2" | 3" | 3" | 4" | |
| 蒸發器 Evaporator | 類型/Type | 水箱盤管/干式殼管式/不銹鋼板式蒸發器 Tank coil/Dry shell and tube/Stainless steel plate evaporator | |||||||||||||
| 冷凍水量(m³/h) Frozen water | 1.65 | 2.25 | 2.8 | 3.3 | 4.5 | 5.6 | 6.53 | 8.63 | 11.35 | 13.21 | 16.68 | 22.8 | 26.9 | 33.95 | |
| 1.96 | 2.7 | 3.36 | 3.92 | 5.4 | 6.73 | 7.84 | 10.36 | 13.62 | 15.85 | 20.02 | 27.36 | 32.27 | 40.73 | ||
| 水箱容量(L)Capacity | 60 | 60 | 60 | 90 | 150 | 200 | 200 | 330 | 330 | 350 | 450 | 580 | 620 | 620 | |
| 進出水管徑Diameter | 1" | 1" | 1" | 1" | 1-1/2" | 2" | 2" | 2" | 2" | 2" | 2-1/2" | 3" | 3" | 4" | |
| 水泵 pump | 功率/Power(kw) | 0.37 | 0.37 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 2.25 | 2.2 | 2.2 | 4 | 3.75 | 5.5 | 5.5 |
| 最高揚程 Maximum lift(m) | 22 | 22 | 30 | 30 | 25 | 25 | 25 | 28 | 28 | 28 | 30 | 30 | 32 | 32 | |
| 最大流量 Maximum flow(m3) | 5.4 | 5.4 | 8.1 | 8.1 | 8.1 | 13.5 | 13.5 | 25.2 | 25.2 | 25.2 | 36 | 36 | 40 | 40 | |
| 安全保護 Security | 壓縮機過熱保護，過流保護，高低壓力保護，超溫保護，流量保護，相序/缺相保護，低液位保護,防凍保護 ,排氣過熱保護 Compressor overheating protection,Overcurrent protection,High and low pressure protection,Overtemperature protection,Traffic protection,Phase sequence,Phase loss protection,Low tevel protection,Frost protection,Exhaust heat protection | ||||||||||||||
| 機械尺寸 Measure | 長 | 920 | 920 | 920 | 920 | 1230 | 1230 | 1230 | 1660 | 1660 | 1960 | 1960 | 2020 | 2020 | 2250 |
| 寬 | 500 | 500 | 500 | 500 | 690 | 690 | 690 | 855 | 855 | 960 | 960 | 990 | 990 | 1120 | |
| 高 | 1030 | 1030 | 1030 | 1030 | 1390 | 1390 | 1390 | 1670 | 1670 | 1730 | 1730 | 1870 | 1870 | 2000 | |
| 機械重量 Unit weight | Kg | 130 | 140 | 170 | 190 | 240 | 270 | 340 | 430 | 470 | 700 | 720 | 890 | 1020 | |
備注：
1.制冷量是依據冷凍水入口溫度12℃，出口溫度7℃；冷卻水入口溫度30℃，出口溫度35℃計算得出。
2.冷凍水溫度范圍：5℃至30℃；冷凍水進出水溫差, 3℃至8℃；冷卻水溫度范圍：18℃至30℃；
冷卻水溫度范圍：18℃至30℃；冷卻水進出水溫差：3.5℃至10℃。
以上可根據客戶要求來生產定做。
上述規格參數尺寸如有變更，恕不另行通知。
Note:
1. The capacity is based on the freezing water inlet temperature 12 ℃, outlet temperature 7 ℃, Outlet temperature of the cooling water inlet temperature 30 ℃, 35 ℃.
2. The chilled water temperature range: 5 ℃ to 30 ℃. Chilled water in and out of the water temperature difference, 3 ℃ to 8 ℃; Cooling water temperature range: 18 ℃ to 30 ℃;
Cooling water temperature range: 18 ℃ to 30 ℃; Cooling water in and out of the water temperature: 3.5 ℃ to 10 ℃.
The above can be customized according to customer requirements to produce.
The above specification size if there is any change, without prior notice.
